Automatic Diecutter - 1650 series

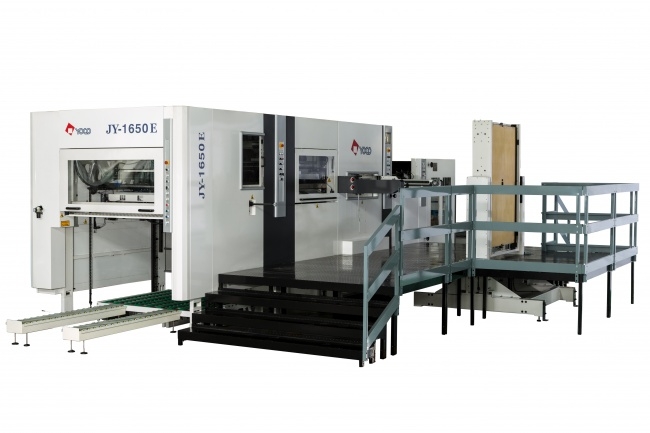

JY-1650E (Top Fed Feeder) |
 |
JY-1650E with top-fed feeder technical data Maximum sheet size | 1650×1200mm | Minimum sheet size | 680×520mm | Maximum diecutting size | 1630×1180mm | Inside chase size | 1660×1215mm | Diecutting plate size | 1680×1186mm | Minimum gripper waste | 12mm (distance from first knife to paper edge) | Maximum pressure | 400 tons | Paper thickness | Cardboard ≥350g/m² | Corrugated paper thickness | 1～7mm | Maximum speed | 5000 sheets/hour | Cutting knife height | 23.8mm | Max. pile height at feeder | 1900mm | Max. pile height at delivery | 1400mm | Main motor power | 22kw | Total power | 40 kw | Dimension(incl.platform and pre-loader) | 10570×6000×2810mm | Weight(excluding feeder) | 30 tons |
Speed is subject to paper thickness and pattern design |
| |
|

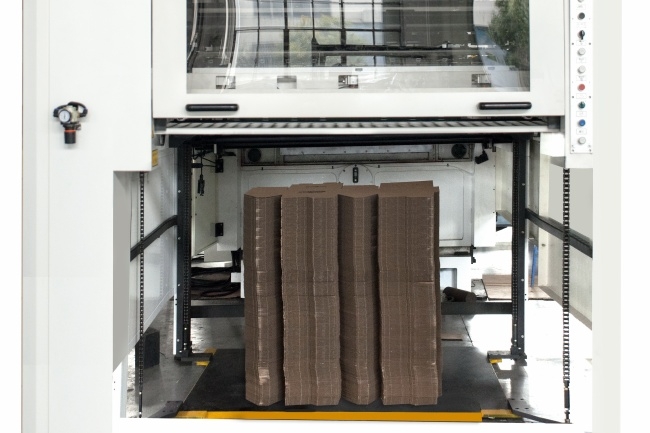

| Delivery section max height 1400mm |
 |
 |
|

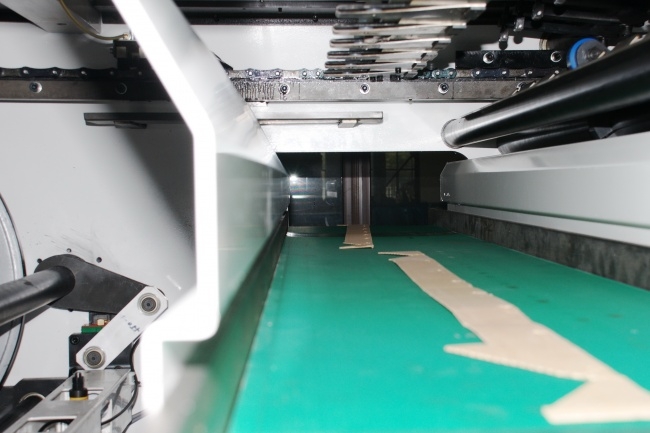

| Gripper front edge waste removal system |
 |
|
|
| Delivery system with belt (Optional aceesories) |
 |
|
|
|
|
|
 |
